Dell Mini 9 Hardware and Upgrades Discuss Dell Mini 9 Hardware and Upgrades.

Reply

LinkBack Thread Tools Display Modes
  (#1) Old
Member

Posts: 54
Join Date: Apr 2009
Default Dell Mini 9 Tablet project complete! (lots of pics) - 10-03-2009, 04:44 PM

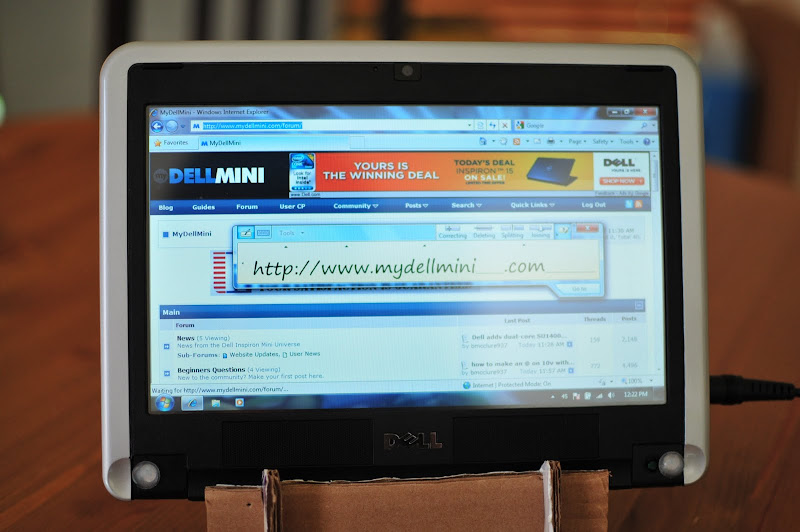

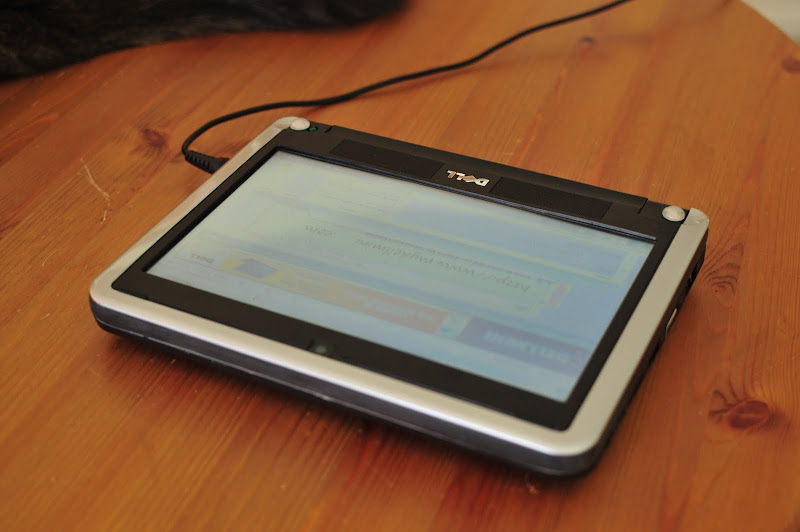

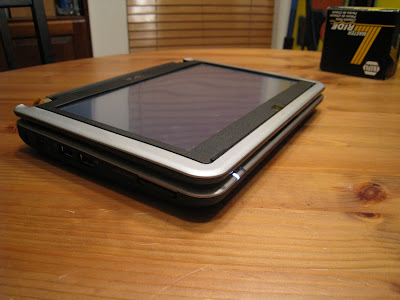

Ok, it's not a full tablet conversion, but more of a slate pc.

The base model is a Dell Vostro A90 (bluetooth, .3mp webcam, 1GB RAM, upgraded 16GB SSD). The touchscreen is the Hoda Technology solderless touchscreen kit.

I started this project back in June, and it was 80% complete then. I took a break for a few months then finally started filling in the gaps in the frame with plastic epoxy. It took me another few weeks to come up with a way to mount the power switch and the covers for where the hinges were.

It is fully complete and functional now, though I will probably go ahead and paint/primer the body filler and paint the powerswitch silver from its current green color. I also am looking into adding an accelerometer to automatically rotate the screen, similar to an iphone.

Any questions, feel free to ask me!

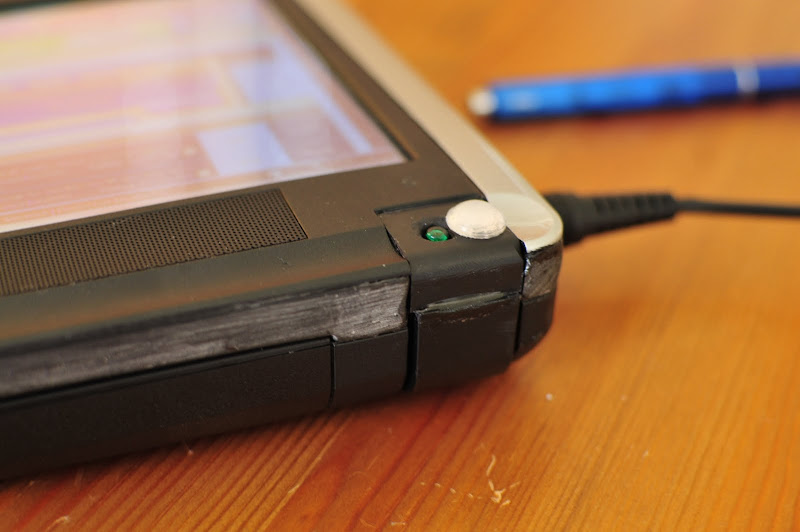

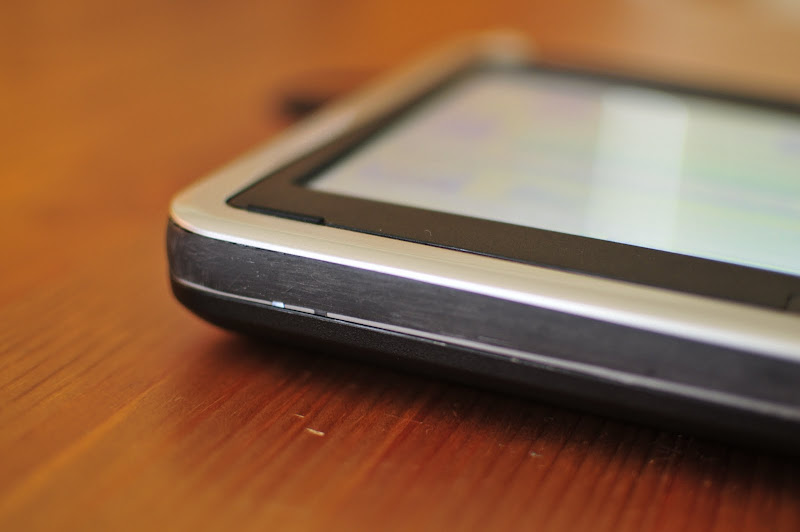

Power switch took me awhile to figure out


Light still works, but not as well

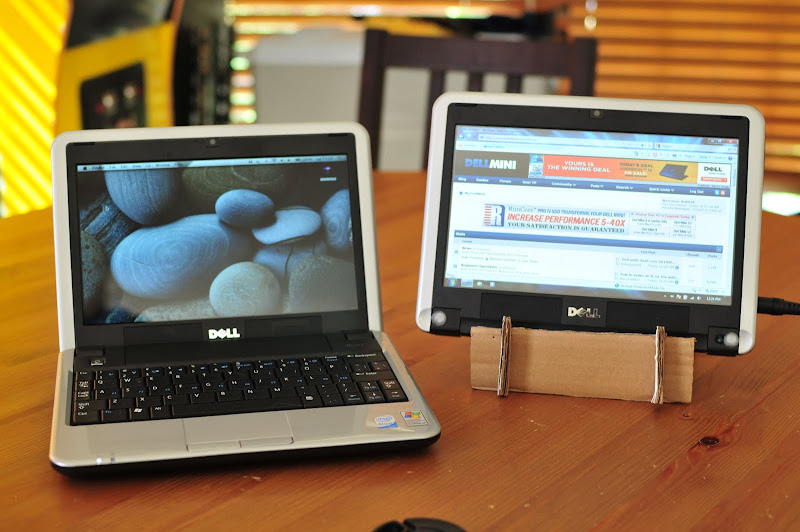

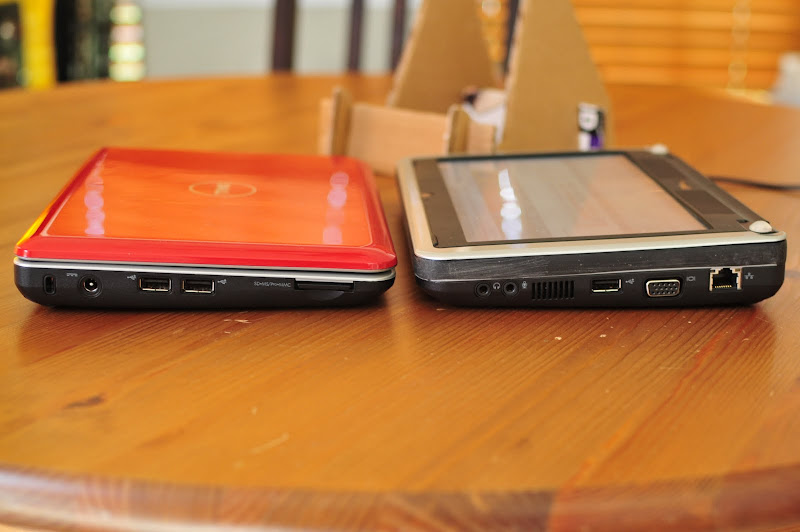

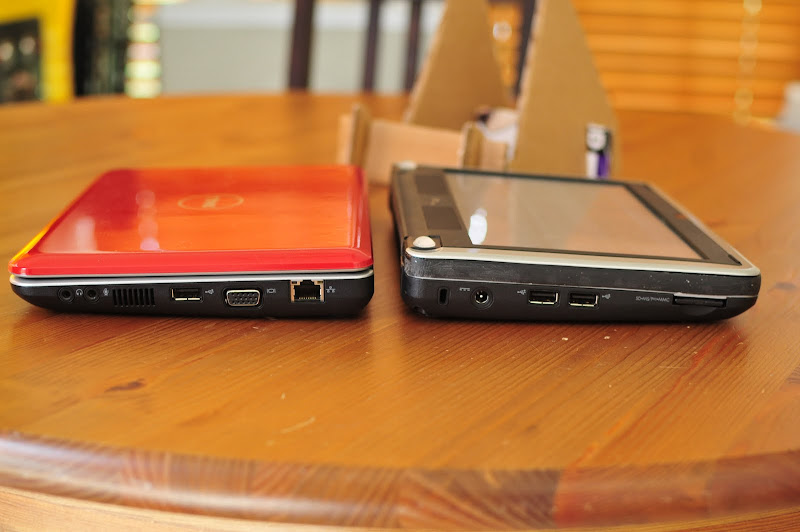

Comparison shots with a Dell Mini 9.




---------- Post added at 12:44 PM ---------- Previous post was at 12:43 PM ----------

Here are the disassembly pictures:

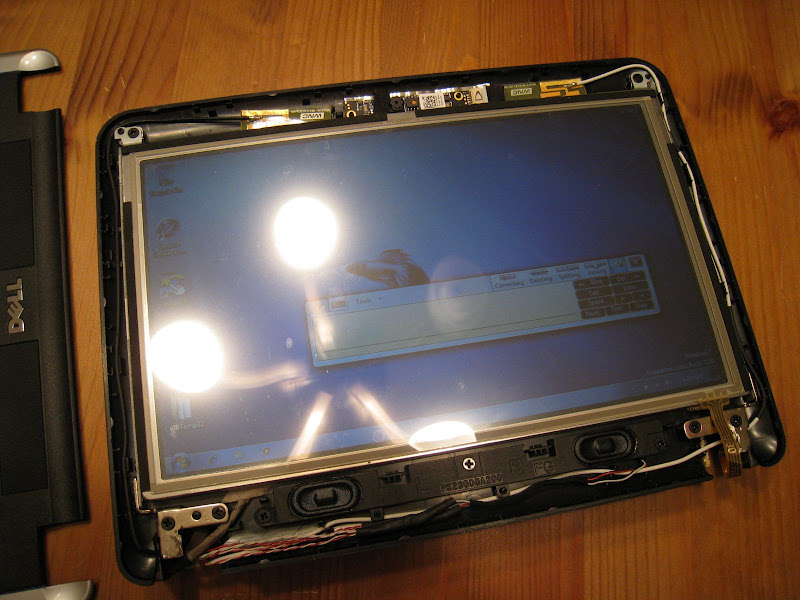

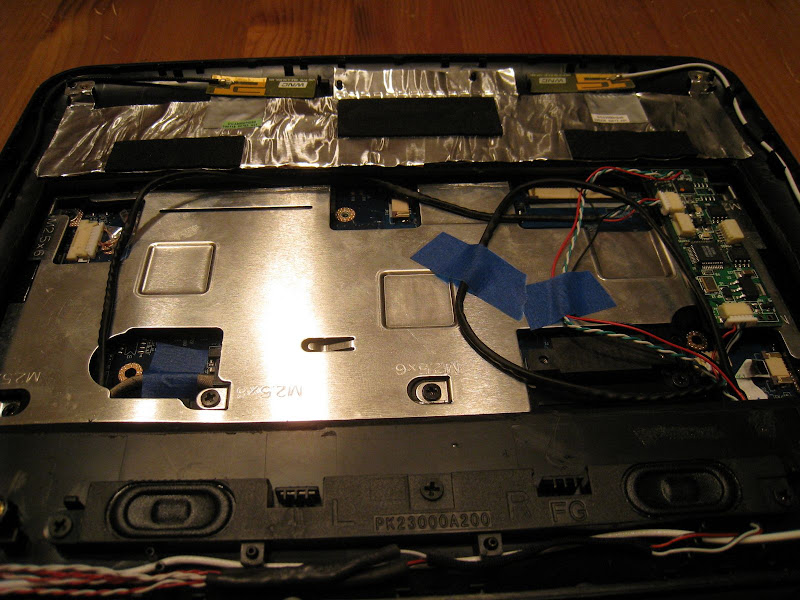

Disassembly - Bezel off

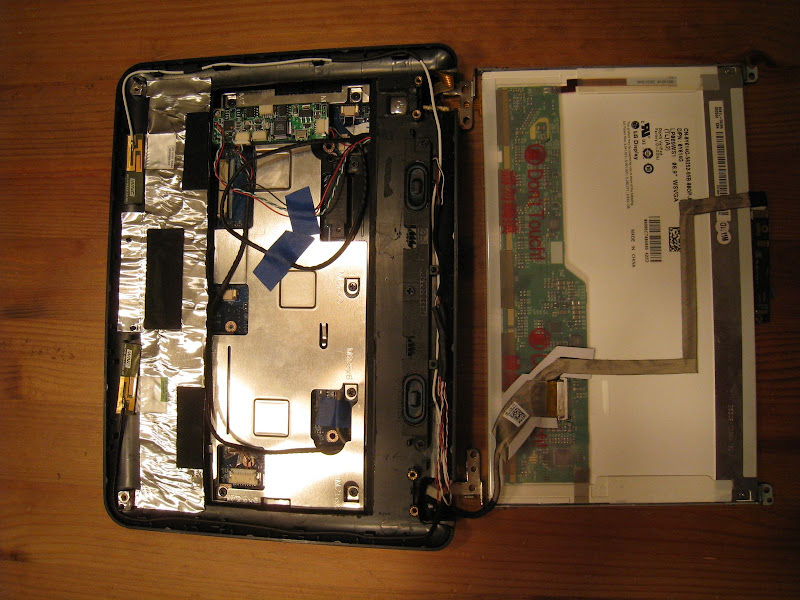

Screen off

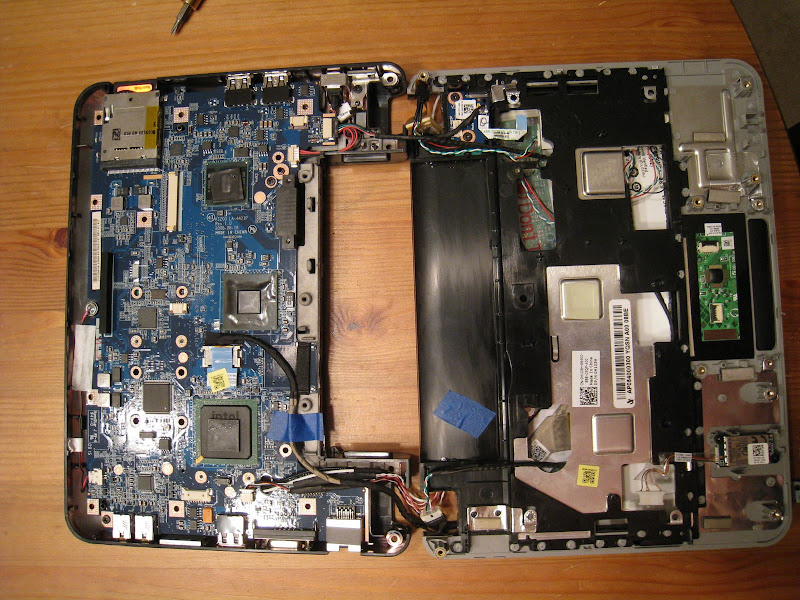

Keyboard bezel/lid off


Cherry Red Dell Mini 9 | OS X 10.5.7 | 2 GB RAM | 64 GB Runcore | BT | 1.3 MP | WiFi | WWAN
Vostro A90 | Win7 RC | 1 GB RAM | 16 GB STEC | BT | 0.3 MP | WiFi | Tablet Conversion
Reply With Quote
  (#2) Old
Senior Member

Posts: 346
Join Date: Sep 2009
Location: Chicago, IL
Default 10-03-2009, 04:45 PM

wow coool!!
Reply With Quote
  (#3) Old
Member

Posts: 54
Join Date: Apr 2009
Default 10-03-2009, 04:45 PM

Here are some in-construction pics:

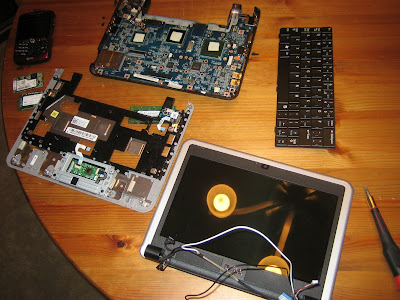

First step: Disassembly

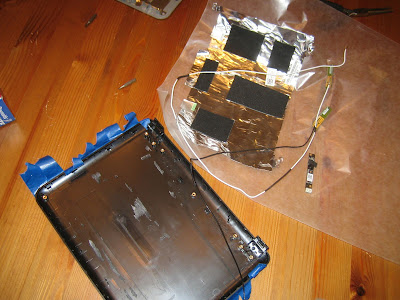

Strip the lid

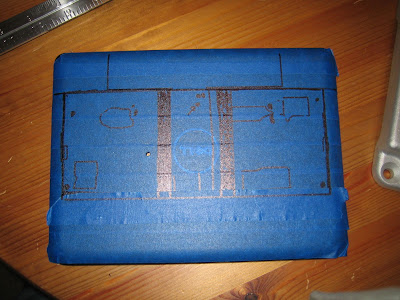

Mark areas to trim the lid

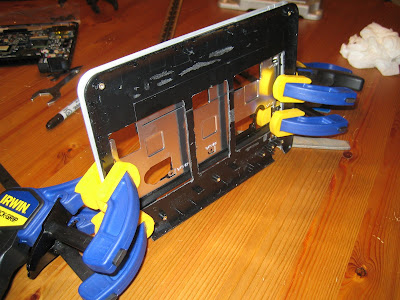

Glue the lid to the bezel

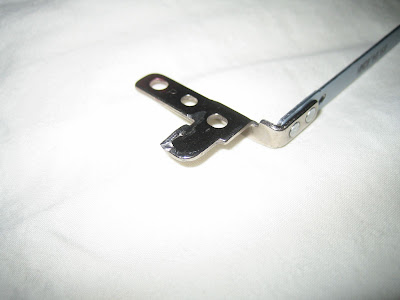

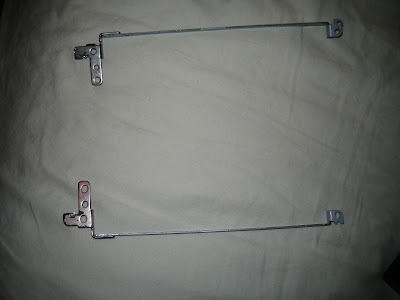

Trim the hinges

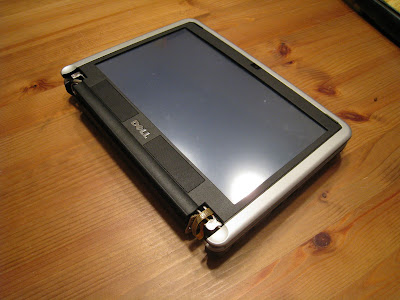

What it looked like in June:




Cherry Red Dell Mini 9 | OS X 10.5.7 | 2 GB RAM | 64 GB Runcore | BT | 1.3 MP | WiFi | WWAN
Vostro A90 | Win7 RC | 1 GB RAM | 16 GB STEC | BT | 0.3 MP | WiFi | Tablet Conversion
Reply With Quote
  (#4) Old
Senior Member

Posts: 373
Join Date: May 2009
Default 10-03-2009, 06:05 PM

I'm on my knees in speechless awe.

g
Reply With Quote
  (#5) Old
Junior Member

Posts: 20
Join Date: Mar 2009
Default Tablet - 10-03-2009, 07:23 PM

How much would you charge to do my Mini 9?
Thanks
Reply With Quote
  (#6) Old
Member

Posts: 51
Join Date: Jun 2009
Default 10-03-2009, 08:45 PM

I'm digging the USB IBM thinkpad keyboard more....LOL
Reply With Quote
  (#7) Old
Senior Member

SkyWriter's Avatar

Posts: 354
Join Date: Mar 2009
Default 10-03-2009, 09:47 PM

i've had several tablets:
1) HP TC1000 and TC1100 running XP/Tablet edition
2) Samsung U1 Ultra
3) a couple of view sonic tablets: windows 2000, and CE

contrary to my deepest desires they have been universally clumsy devices. they are too heavy, too thick, poor input for pen or fingers, under powered, poor hand writing performance.

especially: UI's are meant for righties, left handers need not apply.

i have a friend that seems to be able to use the TC's adequately. so, good luck with that.

i suspect apple would address all the short comings if they produced a tablet. if it was thin, light, multitouch, integrated applications, and most of all responsive and left-hand friendly if would be cool.


White Mini 9 | OSX 10.5.8 | A04 | DellEFI 1.2a5 | 2GB | 64GB RunCore Pro IV | 32GB C6 Transcend | 1.3Mpix | MDD extended battery | OEM BT | Fusion 2.0.4 | 1505 Draft-N

Problems with external displays or projectors in OS X? Try MirrorDisplays2! http://www.mydellmini.com/forum/mac-...html#post73180
Got Static? http://www.mydellmini.com/forum/gene...io-static.html
Reply With Quote
  (#8) Old
Expert Member

strider_mt2k's Avatar

Posts: 867
Join Date: Oct 2008
Location: Southern New Jersey, USA
Default 10-06-2009, 12:16 PM

How are temperatures during long periods of usage?

Do you see any differences?


Inspiron Duo: Win7 Pro 32-Bit, Intel 6200 Wifi Upgrade
Former Inspiron Mini 9 Owner, Modder, Enthusiast
Reply With Quote
  (#9) Old
Member

Posts: 83
Join Date: Aug 2009
Location: Gaylord, MI, USA
Send a message via MSN to scottyrox
Default 10-06-2009, 02:05 PM

what a way to kill a mini 9


Alpine White Dell Mini 9 | 16GB Super Talent SSD | Windows 7 Ultimate | 2GB RAM | Bluetooth | Internal USB Hub | 2GB PNY Internal Jump Drive | 16GB PNY Internal Jump Drive | BIOS A05 |

Christmas list: MDD Extended Battery | Intel 5300 with 3rd Antenna | Hoda Touch Screen
Reply With Quote
  (#10) Old
Super Moderator

anguish's Avatar

Posts: 1,203
Join Date: Apr 2009
Location: Detroit
Default 10-06-2009, 04:53 PM

I gotta admit.. I think it's pretty slick. Could use some more "beautification", but if it works, that's all that matters.


Alienware M11xR2 - Core i5 1.06 - 4 GB - 250 GB HD

Triple Boot Guide - 10v RAM Upgrade Videos - mechdrew's OSX guides
Reply With Quote
